Crystal plasticity

This submodule of NEML provides models for the constitutive response of single crystals that deform though a combination of recoverable elastic deformation and unrecoverable inelastic slip or twinning. These constitutive models are implemented through the large deformation incremental interface, meaning the constitutive model is defined incrementally through the symmetric and skew parts of the spatial velocity gradient. The models can be used in small strain contexts as well, though this means that crystal orientations remain static throughout the calculation.

Fundamentally, crystal plasticity material models are treated no differently than any other macroscale plasticity model in NEML. They use the same interface as any other constitutive model and are at heart just a collection of ordinary differential equations that provide update equations for the stress, given the strain, and some set of internal variables. This means the user can use the crystal plasticity materials models in a finite element solver exactly as with any of the other models in NEML. For example, crystal models are defined using the XML-based input system just like macroscale plasticity models.

One difference between crystal plasticity and macroscale plasticity is that plastic (and elastic) deformation on the microscale is often anisotropic. The anisotropy is dictated by the orientation of the single crystal represented by the crystal plasticity model. In NEML this orientation is defined as the rotation from the original crystal frame of reference to the current frame of reference (see figure below). That is, NEML natively treats orientations as active rotations from the crystal to the lab frame. This orientation is called $\mathbf{Q}$ in the derivation below. The passive rotation from lab to crystal, often measured experimentally, is the transpose of this rotation $\mathbf{Q}^T$ . The NEML interface provides helper methods for extracting orientations from the single crystal model in either convention.

Crystal plasticity was originally developed to track the evolution of this orientation as the single crystal undergoes mechanical loading (either by itself or in conjugation with neighboring grains either in a homogenized or full-field model). The models implemented in this module are sufficient for this task, though the particular implementation is focused more on fully-resolved calculations, like the Crystal Plasticity Finite Element Method (CPFEM), where the stress update is equally important.

Theoretical formulation

The basic kinematics of the single crystal plasticity model are described by Asaro [A1983]. The specific constitutive assumptions developed here were originally summarized in [M2015].

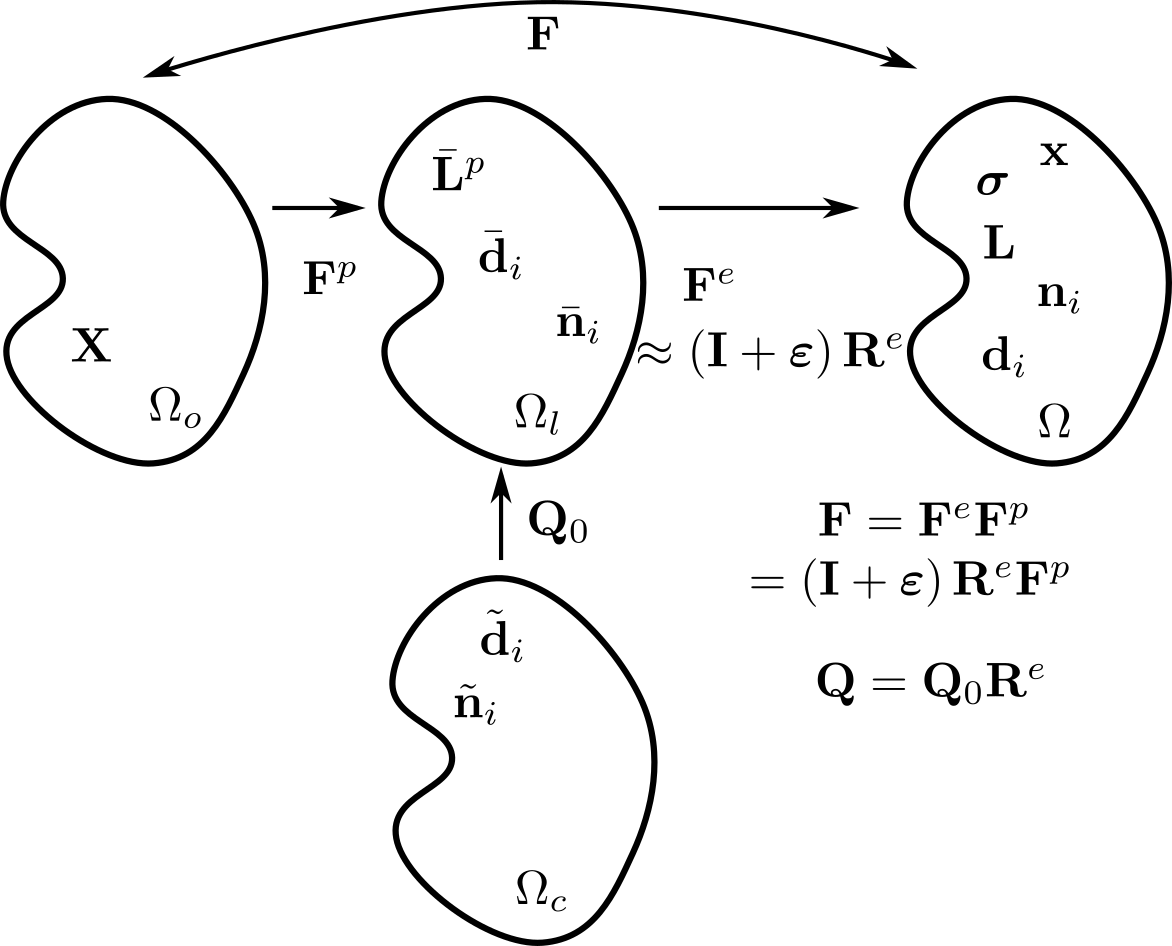

Four frames of reference define the model kinematics: the initial crystal frame $\Omega_c$ , the reference frame $\Omega_o$ , the unloaded intermediate frame $\Omega_l$ , and the current frame $\Omega$ . The kinematic update defines how the material deforms from the reference frame at time zero to the current frame at the given time $t$ .

The kinematic framework begins with the deformation gradient:

$\mathbf{F} = \mathbf{I} + \frac{\partial \mathbf{x}}{\partial \mathbf{X}}$

where $\mathbf{X}$ is the original position of a material point in the reference frame and $\mathbf{x}$ is the location of that same point in the current coordinates. Adopt the multiplicative decomposition of the deformation gradient into elastic and plastic parts [L1969]:

$\mathbf{F}=\mathbf{F}^{e}\mathbf{F}^{p}.$

The spatial velocity gradient can then be defined as

$\mathbf{L}=\dot{\mathbf{F}}\mathbf{F}^{-1}=\dot{\mathbf{F}}^{e}\mathbf{F}^{e-1}+\mathbf{F}^{e}\dot{\mathbf{F}}^{p}\mathbf{F}^{p-1}\mathbf{F}^{e-1}.$

For the moment, consider a general constitutive model defined by the function

$\bar{\mathbf{L}}^{p} = \dot{\mathbf{F}}^{p}\mathbf{F}^{p-1}$

where $\bar{\mathbf{L}}^{p}$ , called here the plastic deformation, is a function of the stress in the intermediate frame of reference and some set of internal variables.

Now assume that the elastic stretch is small

$\mathbf{F}^{e}=\left(\mathbf{I}+\bm{\varepsilon}\right)\mathbf{R}^{e}$

with $\bm{\varepsilon} \ll \mathbf{I}$ so that

$\left(\mathbf{I}+\bm{\varepsilon}\right)^{-1}\approx\mathbf{I}-\bm{\varepsilon}.$

The limited recoverable elastic deformation available in single metal crystals justifies this assumption. Furthermore, neglect the elastic stretch in kinematic push forward/pull back operations, so that the translation from the intermediate to the current coordinates is given by the rotation $\mathbf{R}^e$ .

Then the spatial velocity gradient expands to

$\mathbf{L}=\dot{\bm{\varepsilon}}-\dot{\bm{\varepsilon}}\bm{\varepsilon}+\bm{\Omega}^{e}-\bm{\Omega}^{e}\bm{\varepsilon}+\bm{\varepsilon}\bm{\Omega}^{e}-\bm{\varepsilon}\bm{\Omega}^{e}\bm{\varepsilon}+\mathbf{L}^{p}-\mathbf{L}^{p}\bm{\varepsilon}+\bm{\varepsilon}\mathbf{L}^{p}-\bm{\varepsilon}\mathbf{L}^{p}\bm{\varepsilon}.$

Label the elastic spin

$\bm{\Omega}^{e}=\dot{\mathbf{R}}^{e}\mathbf{R}^{eT}$

and label the plastic deformation rotated to the current frame

$\mathbf{L}^{p}=\mathbf{R}^{e}\bar{\mathbf{L}}^{p}\mathbf{R}^{eT}.$

As described above, define the current lattice rotation as

$\mathbf{Q}=\mathbf{R}^{e}\mathbf{Q}_{0}.$

Note this relation exposes the fundamental kinematic assumption of crystal plasticity: that the plastic deformation $\mathbf{F}^p$ does not affect the lattice coordinates. This assumption reflects the fact that in a idealized single crystal the atomic lattice after some increment of inelastic deformation caused by planar slip is identical to the lattice before the increment of slip occurred. As indicated in the figure above, this relation ties the initial crystal frame to the intermediate configuration and not the reference frame. The elastic spin can be written solely in terms of the current lattice rotation

$\dot{\mathbf{Q}}\mathbf{Q}^{T}=\dot{\mathbf{R}}^{e}\mathbf{Q}_{0}\mathbf{Q}_{0}^{T}\mathbf{R}^{eT}=\dot{\mathbf{R}}^{e}\mathbf{R}^{eT}=\bm{\Omega}^{e}$

As $\bm{\varepsilon}$ , is small drop terms in the spatial velocity gradient that are quadratic with respect to the elastic stretch:

$\mathbf{L}=\dot{\bm{\varepsilon}}-\dot{\bm{\varepsilon}}\bm{\varepsilon}+\bm{\Omega}^{e}-\bm{\Omega}^{e}\bm{\varepsilon}+\bm{\varepsilon}\bm{\Omega}^{e}+\mathbf{L}^{p}-\mathbf{L}^{p}\bm{\varepsilon}+\bm{\varepsilon}\mathbf{L}^{p}$

Separate out the symmetric and skew-symmetric parts

$\mathbf{D}=\frac{1}{2}\left(\mathbf{L}+\mathbf{L}^{T}\right)=\dot{\bm{\varepsilon}}+\mathbf{D}^{p}+\bm{\varepsilon}\left(\bm{\Omega}^{e}+\mathbf{W}^{p}\right)-\left(\bm{\Omega}^{e}+\mathbf{W}^{p}\right)\bm{\varepsilon}-\frac{1}{2}\left(\dot{\bm{\varepsilon}}\bm{\varepsilon}+\bm{\varepsilon}\dot{\bm{\varepsilon}}\right)$

$\mathbf{W}=\frac{1}{2}\left(\mathbf{L}-\mathbf{L}^{T}\right)=\bm{\Omega}^{e}+\mathbf{W}^{p}+\bm{\varepsilon}\mathbf{D}^{p}-\mathbf{D}^{p}\bm{\varepsilon}+\frac{1}{2}\left(\bm{\varepsilon}\dot{\bm{\varepsilon}}-\dot{\bm{\varepsilon}}\bm{\varepsilon}\right).$

The derivation refers to the symmetric part of the spatial velocity gradient as the “deformation rate tensor” and the skew part as the “vorticity tensor.”

The NEML single crystal model furthermore neglects the mixed term $\dot{\bm{\varepsilon}}\bm{\varepsilon}$ . This assumption is reasonable only for slow loading rates, for example those typical of high temperature structural components. This approximation considerably simplifies the deformation rate and vorticity tensors

$\mathbf{D}=\frac{1}{2}\left(\mathbf{L}+\mathbf{L}^{T}\right)=\dot{\bm{\varepsilon}}+\mathbf{D}^{p}+\bm{\varepsilon}\left(\bm{\Omega}^{e}+\mathbf{W}^{p}\right)-\left(\bm{\Omega}^{e}+\mathbf{W}^{p}\right)\bm{\varepsilon}$

$\mathbf{W}=\frac{1}{2}\left(\mathbf{L}-\mathbf{L}^{T}\right)=\bm{\Omega}^{e}+\mathbf{W}^{p}+\bm{\varepsilon}\mathbf{D}^{p}-\mathbf{D}^{p}\bm{\varepsilon}.$

Label the total spin as

$\bm{\Omega}^{\star}=\bm{\Omega}^{e}+\mathbf{W}^{p}$

and make the hypoelastic assumption that

$\dot{\bm{\varepsilon}} = \mathbf{\mathfrak{S}} : \dot{\bm{\sigma}}$

or

$\dot{\bm{\sigma}} = \mathbf{\mathfrak{C}} : \dot{\bm{\varepsilon}}$

where $\mathbf{\mathfrak{S}}$ is the elastic compliance tensor in the current coordinates, $\mathbf{\mathfrak{C}}$ is the elastic stiffness tensor (so that $\mathbf{\mathfrak{C}} = \mathbf{\mathfrak{S}}^{-1}$ ), and $\dot{\bm{\sigma}}$ is the rate of Cauchy stress (which is in the current frame of reference). Combining these definitions and assumptions with the definition of the deformation rate tensor produces the stress update equation

$\dot{\bm{\sigma}}=\mathbf{C}:\left[\mathbf{D}-\mathbf{D}^{p}-\mathbf{S}:\mathbf{\sigma}\cdot\bm{\Omega}^{\star}+\bm{\Omega}^{\star}\cdot\mathbf{S}:\mathbf{\sigma}\right].$

This equation can be integrated to update the stress from time step to time step.

A similar rearrangement of the vorticity equation gives an update equation for the current crystal orientation:

$\bm{\Omega}^{e}=\dot{\mathbf{Q}}\mathbf{Q}^{T}=\mathbf{W}-\mathbf{W}^{p}-\bm{\varepsilon}\mathbf{D}^{p}+\mathbf{D}^{p}\bm{\varepsilon}.$

The NEML single crystal model is defined by an implicit integration of the deformation rate equation, defining the stress update, and an explicit integration of the vorticity equation, defining the updated crystal orientation. Both equations require the definition of the plastic deformation rate in the current frame of reference, $\mathbf{L}^p$ , to close the system of equations. Note the actual expressions decompose the plastic deformation rate into symmetric, $\mathbf{D}^p$ , and skew, $\mathbf{W}^p$ , parts. A NEML crystal model is defined by the constitutive model for the plastic deformation rate as a function of the Cauchy stress, temperature, and some set of internal variables $\mathbf{h}$ . The stress and orientation update equations must be supplemented with the evolution equations for the internal variables, $\dot{\mathbf{h}}$ , which are integrated implicitly.

In addition to this basic kinematic framework, NEML has the ability to provide crystal models with the Nye tensor

$\bm{\alpha} = -\nabla \times \mathbf{F}^{e-1}$

Describing the areal density of geometrically necessary dislocations. For this definition of the Nye tensor, the curl is taken in the current configuration [DHT2019]. The Nye tensor can be used as an ad hoc contributor to slip system flow or hardening models. The NEML system cannot calculate the Nye tensor itself – that requires gradient information not available at the material point level – but can accept the calculated Nye tensor from a higher level framework, for example an FEA model, and process it accordingly. To help with this calculation, the model provides the inverse elastic tensor $\mathbf{F}^{e-1}$ as an available output.

Crystal plasticity continuum damage

NEML has the capability to supplement this general kinematic framework with a continuum damage model that degrades the elastic properties of the material in response to one or more damage variable, evolving as a function of internal history variables and the stress state. The details of the damage subsystem are described in their own section in the manual.

Crystal plasticity damage models

Specialized models

The crystal plasticity module includes several material-specific combinations of slip system hardening and slip rate models. These are documented with special chapters in the documentation:

Hu and Cocks model for 316H SS

Postprocessors

A system of postprocessors provides a generic interface for altering the state of a crystal model in response to some internal (i.e. within the material system) or external (e.g. from a polycrystal or full-field solver) stimulus. As an example, this system can be used to reorient a crystal by some twinning operation when certain criteria are met.

Single crystal model postprocessors

Mathematical operations

The preceding derivation shows that there are a lot of tensor operations used in the crystal plasticity stress update. Currently, the macroscale NEML material models use raw pointer arrays to represent vectors and tensors. This would be unwieldy for the crystal plasticity models. Instead, the crystal plasticity module uses C++ objects representing vectors, rank 2 tensors, rank 4 tensors, and rotations (internally represented as quaternions). This object system is described in the math helpers documentation.

The object system can either manage its own memory, in which case each individual vector, tensors, etc. is stored in separate, small blocks of memory. Alternatively, the system can work with externally-managed memory, for example if the data for numerous single crystal models are stored sequentially, as might occur in either a homogenized analysis of a polycrystal or in a CPFEM calculation. In this mode the object system provides a convenient, object-oriented interface to the user but does not copy data out of the large blocked arrays. This approach is used in the actual implementation of the crystal models to avoid excess memory use, copying, and to help the compiler perform vectorization optimizations.

Note

Future versions of NEML will replace the raw pointer math in the macroscale plasticity models with the object system.

Storing history variables

The macroscale NEML material models use raw pointer arrays to represent the model internal variables. This means the person implementing the model is responsible for remembering which variable aligns with which position in the flat array. Similarly, it means that the end-user must know the index of an internal variable of interest in order to include it in the output of a finite element simulation.

The history object stores the variables and corresponding meta-information – the name of the variable and the type of object (scalar, vector, rotation, etc.). The history object is described in a seperate section.

As with the tensor object system, the history set object can either manage its own memory or work with externally-managed memory. Again, this facilitate vectorization and avoids copying when the input program can provide the history of many material points in a large block array.

Note

Future versions of NEML will replace raw pointer arrays storing history vectors in the macroscale plasticity models with the object system.

Polycrystal homogenization and plotting

To help with developing and debugging models, NEML provides python implementations of simple polycrystal homogenization models and a suite of python functions for plotting pole figures, inverse pole figures, and other crystallographic information.

Implementation

NEML crystal models are implemented as a subclass of the large deformation incremental interface. In addition to the basic stress, history, and orientation updates the class also provides methods for getting the current crystal orientation (in active or passive convention), useful for output, and similar methods for setting or resetting the crystal orientation, useful either for bulk input of crystal orientations from a separate file for CPFEM calculations or for interfacing with models which cause crystal to reorient, for example twinning or recrystallization models.

The implementation uses a coupled, Euler implicit integration of the stress and internal variable rate equations. After the model successfully updates these quantities it then uses a separate Euler explicit exponential integration of the elastic spin to update the crystal orientation. The exponential integrator ensures the orientation remains in the special orthogonal group.

The crystal model relies on two major subobjects: a KinematicModel, which defines the form of the stress, history, and orientation rates, and a Lattice object providing crystallographic information about the crystal system.

Parameters

Parameter	Object type	Description	Default
`kinematics`	`neml::KinematicModel`	Model kinematics	No
`lattice`	`neml::Lattice`	Crystallography information	No
`initial_angle`	`neml::Orientation`	Initial crystal orientation	Identity
`update_rotation`	`bool`	Evolve the crystal orientation	`true`
`tol`	`double`	Nonlinear solver relative tolerance	`1.0e-8`
`miter`	`int`	Maximum nonlinear solver iterations	`30`
`verbose`	`bool`	Print lots of debug messages	`false`
`max_divide`	`int`	Maximum number of adaptive integration subdivision	`6`

Class description

class SingleCrystalModel : public neml::NEMLModel_ldi, public neml::Solvable 

Single crystal model integrator.

Public Functions

SingleCrystalModel(ParameterSet &params): Raw constructor.

virtual void populate_state(History &history) const: Setup blank history.

virtual void init_state(History &history) const: Actually initialize history.

virtual void populate_static(History &history) const: Not changing state.

virtual void init_static(History &history) const: Static stat.

double strength(double *const hist, double T) const: Useful methods for external models that want an idea of an average strength

void Fe(double *const stress, double *const hist, double T, double *Fe) const: Used to calculate the Nye tensor.

virtual void update_ld_inc(const double *const d_np1, const double *const d_n, const double *const w_np1, const double *const w_n, double T_np1, double T_n, double t_np1, double t_n, double *const s_np1, const double *const s_n, double *const h_np1, const double *const h_n, double *const A_np1, double *const B_np1, double &u_np1, double u_n, double &p_np1, double p_n): Large deformation incremental update.

virtual double alpha(double T) const: Instantaneous CTE.

virtual void elastic_strains(const double *const s_np1, double T_np1, const double *const h_np1, double *const e_np1) const: Helper to calculate the elastic strain.

virtual size_t nparams() const: Number of nonlinear equations to solve in the integration.

virtual void init_x(double *const x, TrialState *ts): Setup an initial guess for the nonlinear solution.

virtual void RJ(const double *const x, TrialState *ts, double *const R, double *const J): Integration residual and jacobian equations.

Orientation get_active_orientation(double *const hist) const: Get the current orientation in the active convention (raw ptr history)

Orientation get_active_orientation(const History &hist) const: Get the current orientation in the active convention.

Orientation get_passive_orientation(double *const hist) const: Get the current orientation in the passive convention (raw ptr history)

Orientation get_passive_orientation(const History &hist) const: Get the current orientation in the passive convention.

void set_active_orientation(double *const hist, const Orientation &q): Set the current orientation given an active rotation (crystal to lab)

void set_active_orientation(History &hist, const Orientation &q): Set the current orientation given an active rotation (crystal to lab)

void set_passive_orientation(double *const hist, const Orientation &q): Set the current orientation given a passive rotation (lab to crystal)

void set_passive_orientation(History &hist, const Orientation &q): Set the current orientation given a passive rotation (lab to crystal)

virtual bool use_nye() const: Whether this model uses the nye tensor.

void update_nye(double *const hist, const double *const nye) const: Actually update the Nye tensor.

Public Static Functions

static std::string type(): Type for the object system.

static ParameterSet parameters(): Parameters for the object system.

static std::unique_ptr<NEMLObject> initialize(ParameterSet &params): Setup from a ParameterSet.
